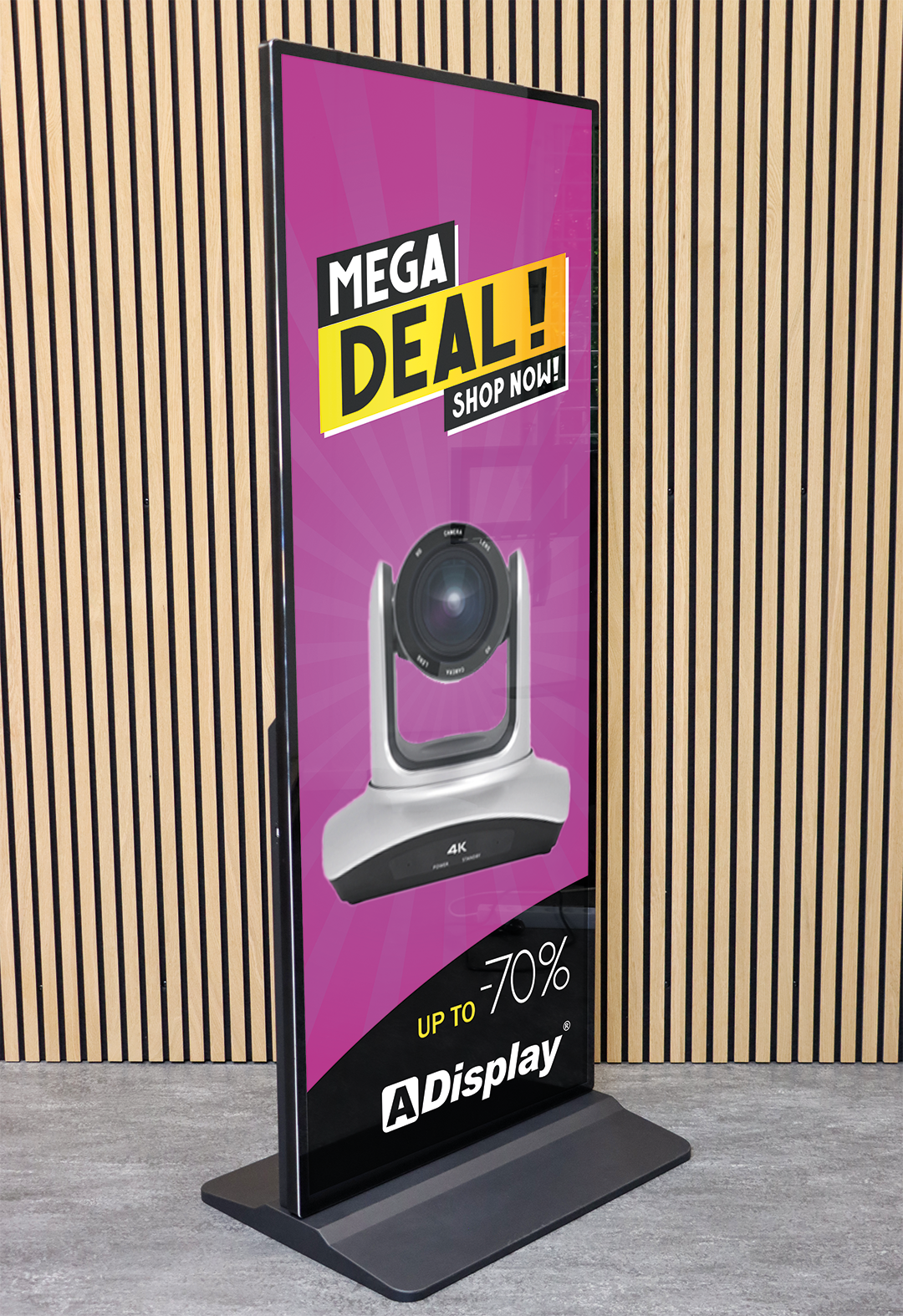

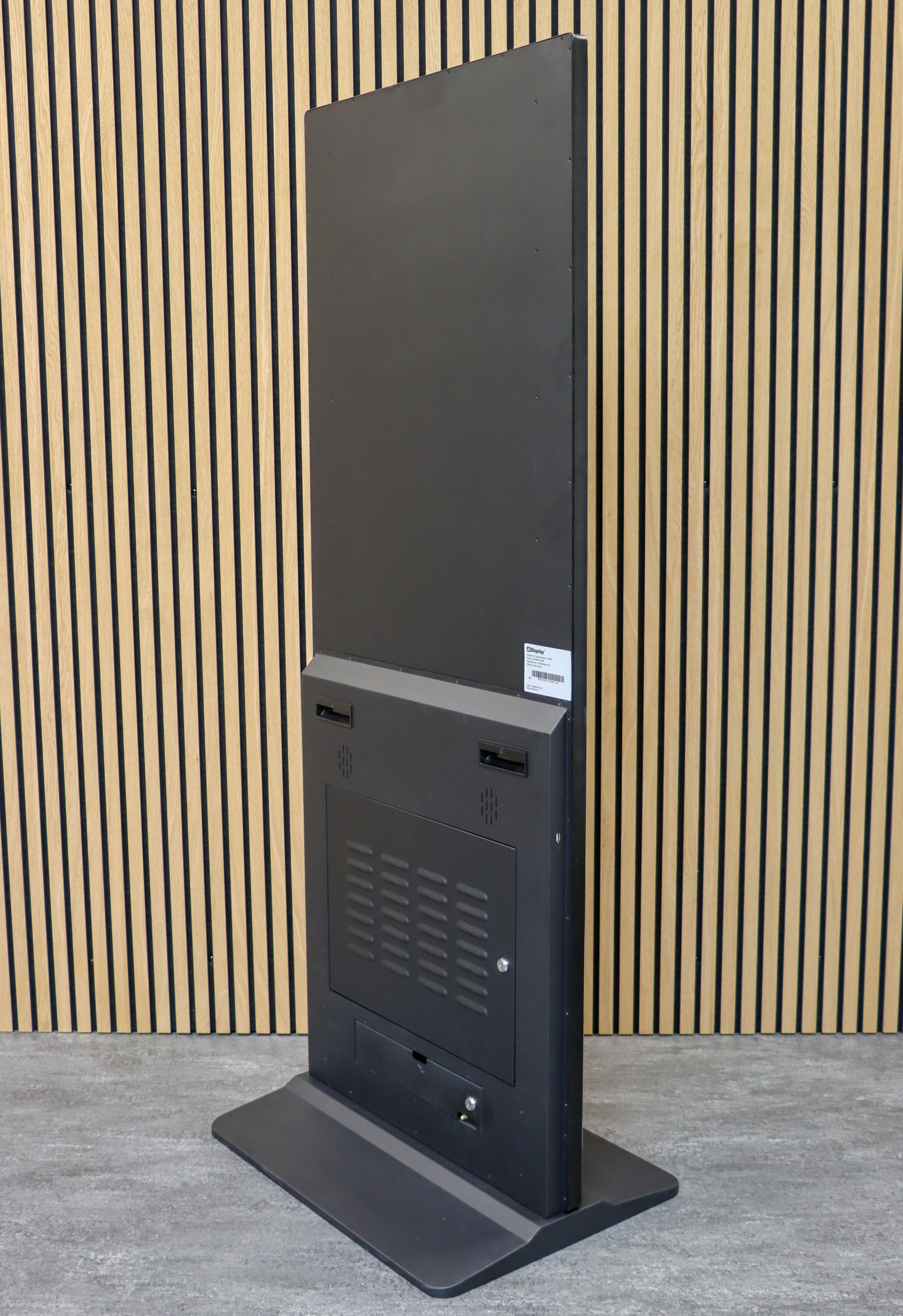

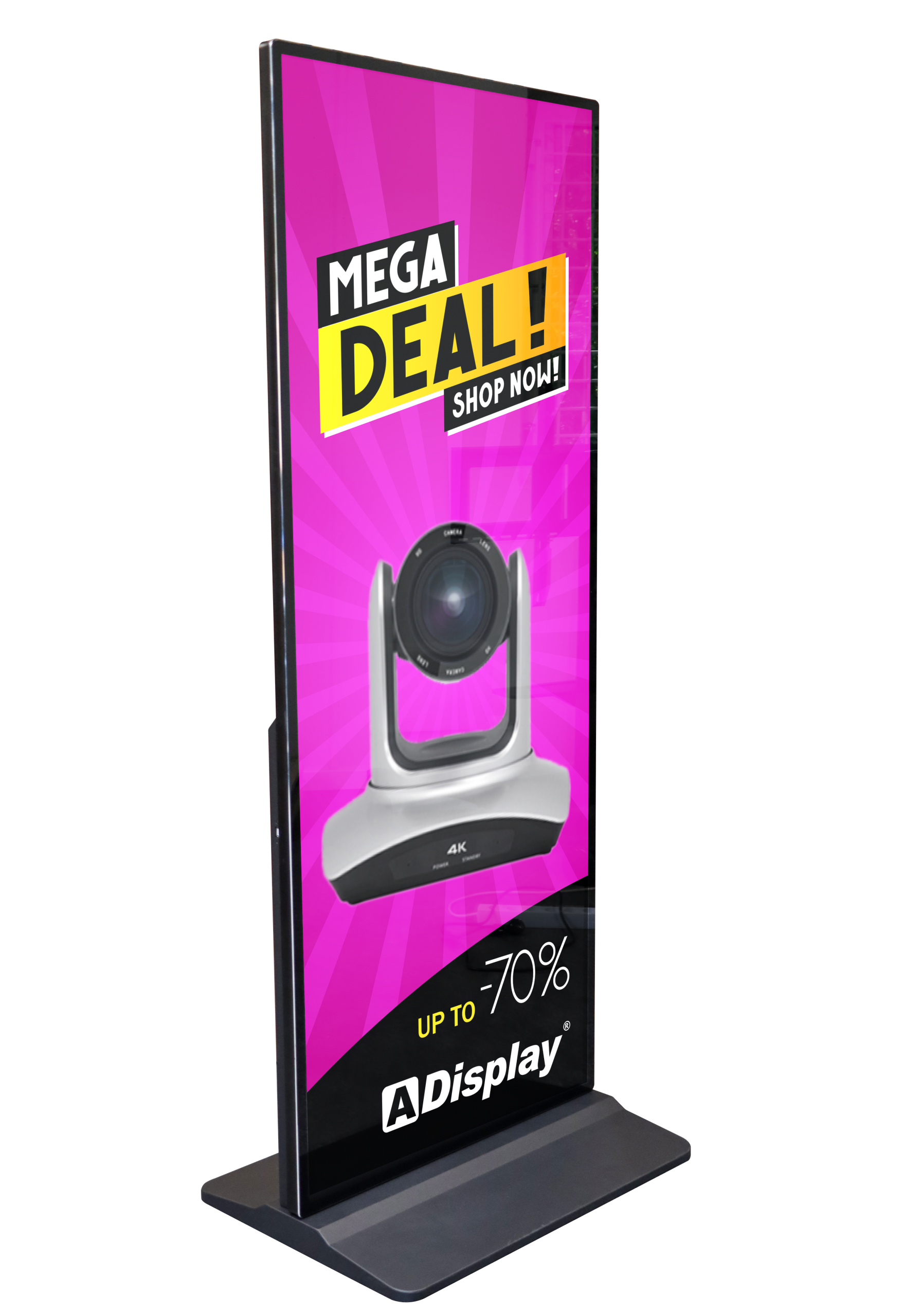

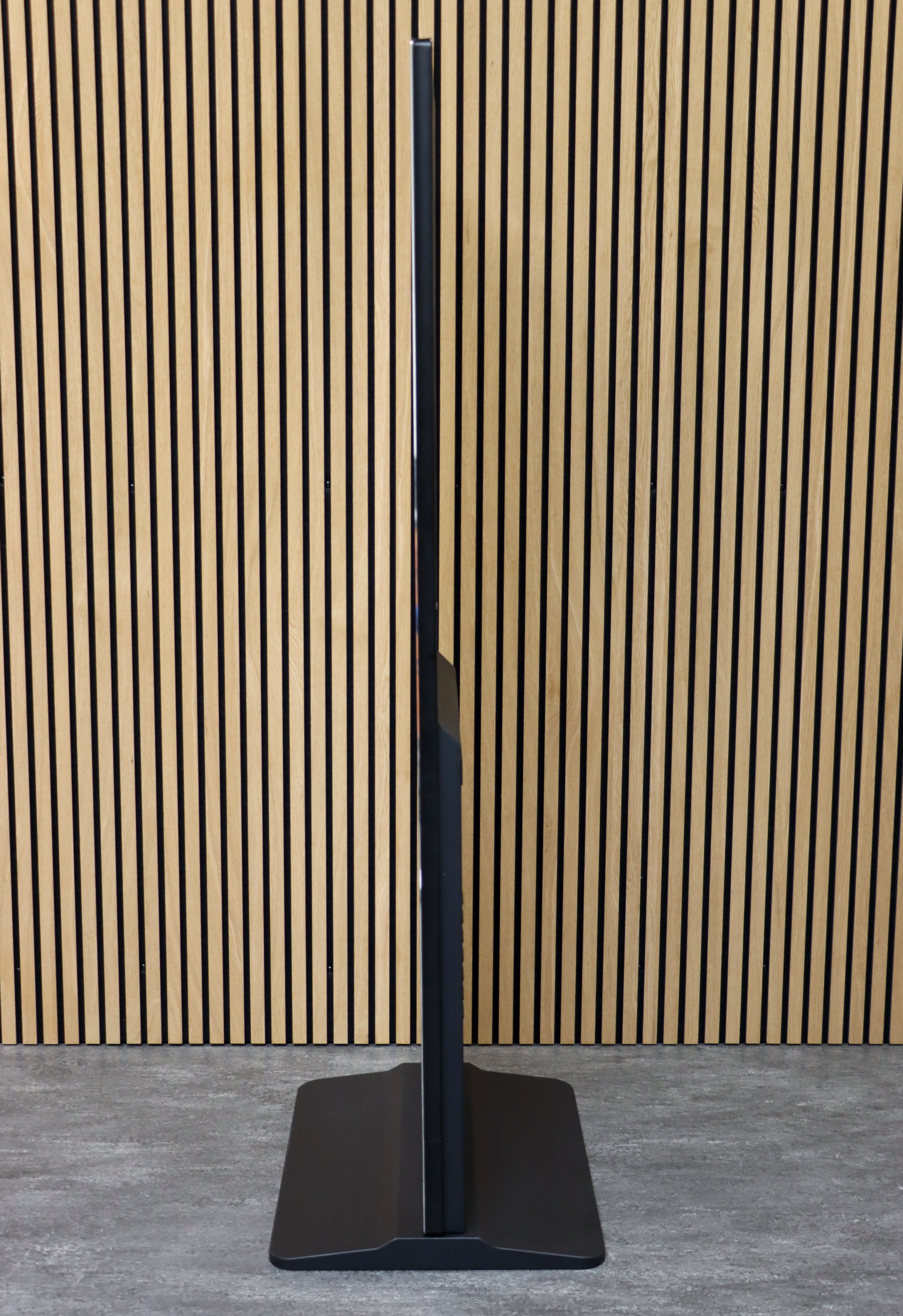

AD-6903-FLOOR
|
Model No. |
AD-AH69FS |
|
Panel size |
69″ TFT-LCD |
|
Outline |
1725.93*673.89*60(mm) |
|
Display area(mm)/mode |
1649.6*617(mm) |
|
Aspect ratio |
32:9 |
|
Maximum resolution |
3840*1488 |
|
Display color |
16.7M |
|
Brightness (nits) |
450cd/㎡ |
|
Contrast |
1200:1 |
|
Visual angle |
178°/178° |
|
Response time |
8ms |
|
Life(hrs) |
>60,000(hrs) |
|
Processor and Memory （4K) |
|
|
Operation System |
Android 11 |
|
Chip |
RK3566 |
|
CPU |
Quad-core Cortex-A55 1.9GHz |
|
GPU |
Mali-G31 |
|
RAM |
2GB /4G |
|
ROM |
16G/32G |
|
Input and output |
|
|
HDMI input |
1 |
|
USB |
2 (2.0 interface) |
|
LAN (RJ 45) |
1 |
|
Speaker |
2×5W (8Ω) |
|
Network |
|
|
LAN |
100M ethernet |
|
Wifi (with 2.4G, 5.5dBi antenna) |
802.11 a/b/g/n |
|
Video |
|
|
Color system |
PAL/NTSC/SECAM |
|
OSD display( screen menu display) |
|
|
Menu language |
Chinese/English |
|
Power |
|
|
Power supply |
AC110V-220 |
|
Maximum power consumption |
≦50W |
|
Standby power consumption |
<5W |
|
Temperature |
|
|
Working temperature |
－10℃~50℃ |
|
Storage temperature |
－20℃~60℃ |
|
Working humidity |
20%~80% |
|
Storage humidity |
5%~95% |
|
Appearance |
|
|
Color/Appearance size |
Black，Gray，White / Customized（32″-98″) |
|
Case |
Metal case SPCC with 4 wheels |
|
Installation |
Floor-standing |
|
Weight |
53KG |
|
Model No. |
AD-6903 |
|
Panel size |
69″ TFT-LCD |
|
Outline |
1725.93*673.89*60(mm) |
|
Display area(mm)/mode |
1649.6*617(mm) |
|
Aspect ratio |
32:9 |
|
Maximum resolution |
1488 x 3840 |
|
Display color |
16.7M |
|
Brightness (nits) |
450cd/㎡ |
|
Contrast |
1200:1 |
|
Visual angle |
178°/178° |
|
Response time |
8ms |
|
Life(hrs) |
>60,000(hrs) |
|
Processor and Memory （4K) |
|
|
Operation System |
Android 11 |
|
Chip |
RK3566 |
|
CPU |
Quad-core Cortex-A55 1.9GHz |
|
GPU |
Mali-G31 |
|
RAM |
2GB /4G |
|
ROM |
16G/32G |
|
Input and output |
|
|
HDMI input |
1 |
|
USB |
2 (2.0 interface) |
|
LAN (RJ 45) |
1 |
|
Speaker |
2×5W (8Ω) |
|
Network |
|
|
LAN |
100M ethernet |
|
Wifi (with 2.4G, 5.5dBi antenna) |
802.11 a/b/g/n |
|
Video |
|
|
Color system |
PAL/NTSC/SECAM |
|
OSD display( screen menu display) |
|
|
Menu language |
Chinese/English |
|
Power |
|
|
Power supply |
AC110V-220 |
|
Maximum power consumption |
≦50W |
|
Standby power consumption |
<5W |
|
Temperature |
|
|
Working temperature |
－10℃~50℃ |
|
Storage temperature |
－20℃~60℃ |
|
Working humidity |
20%~80% |
|
Storage humidity |
5%~95% |
|
Appearance |
|
|
Color |
Black |
|
Case |
Metal case SPCC with 4 wheels |
|
Installation |
Floor-standing |
|
Weight |
53KG |
